ShapeMaster User Guide
The Catalog Properties are where the global defaults for shape construction etc. are set.
These defaults can be overridden by Drawing Properties for individual jobs, which in turn can be overridden by Shape Properties.
Starter catalogs are included in the installation (...qim). Any changes will only come into effect upon opening a NEW drawing.
ALL new users can and should set up your company details and other global setup defaults before you start using ShapeMaster.

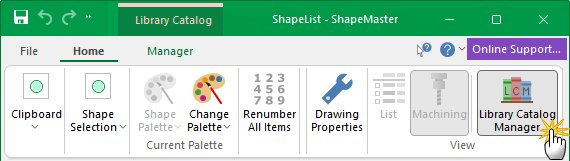

Your Catalog can be accessed from the...
or

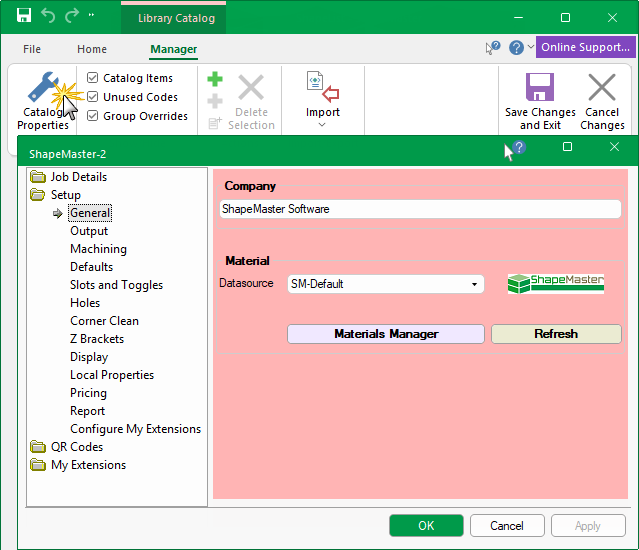

Catalog property sheets are displayed with a pink background to distinguish it from Drawing [F4] properties which display with a light grey background.
